Diamond Series

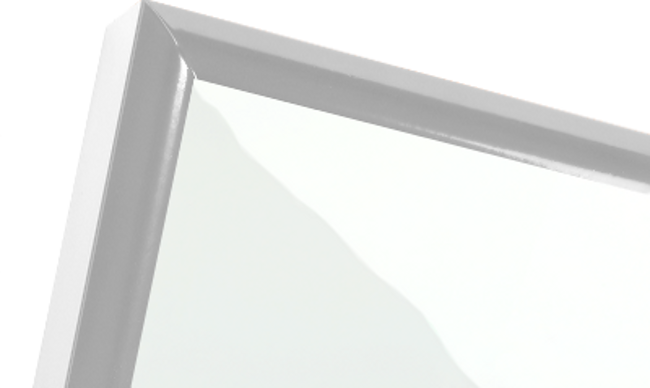

Diamond glass impresses with its elegant, light reflecting surface. In any room this heating brings elegance and attractive design.







Technical data

Surface ESG-Glass (Safety glass)
Glass type Diamond
Frame Aluminium
Voltage 230 V / 50 Hz
Supply voltage
 U~ = 205 – 240 V
Radiation temperature
 Variable between 0°C until 180°C electronically regulated
Control system
 Integrated into heating system
Operating element and room thermostat
 ISTC
Safety temperature limiting
 Over temperature guard
Remote receiver
 433,92 MHz
Standby consumption
 0,5 W
Protection IP20
Mounting

Ceiling mounting,

wall mounting,

mounting with wall mounting angle set,

mounting with base



Models 60’s series

The series with 60 cm width.

Article Format Glass color
 Frame Weight Max. Power Room size*
220310 60 x 60 cm white silver about 8.6 kg 1000 W until 15 m²
220129 60 x 60 cm white white about 8.6 kg 1000 W until 15 m²
220309 60 x 60 cm white black  about 8.6 kg 1000 W until 15 m²
220312 60 x 60 cm black  silver about 8.6 kg 1000 W until 15 m²
220311 60 x 60 cm black white about 8.6 kg 1000 W until 15 m²
220132 60 x 60 cm black black about 8.6 kg 1000 W until 15 m²
220147 60 x 60 cm RAL  RAL about 8.6 kg 1000 W until 15 m²
220314 60 x 90 cm white silver about 12.1 kg 1500 W until 20 m²
220130 60 x 90 cm white white about 12.1 kg 1500 W until 20 m²
220313 60 x 90 cm white black about 12.1 kg 1500 W until 20 m²
220316 60 x 90 cm black silver about 12.1 kg 1500 W until 20 m²
220315 60 x 90 cm black white about 12.1 kg 1500 W until 20 m²
220133 60 x 90 cm black black about 12.1 kg 1500 W until 20 m²
220148 60 x 90 cm RAL RAL about 12.1 kg 1500 W until 20 m²
220318 60 x 120 cm white silver about 15.6 kg 2000 W until 25 m²
220131 60 x 120 cm white white about 15.6 kg 2000 W until 25 m²
220317 60 x 120 cm white black about 15.6 kg 2000 W until 25 m²
220393 60 x 120 cm white frameless about 15.6 kg 2000 W until 25 m²
220320 60 x 120 cm black silver about 15.6 kg 2000 W until 25 m2
220319 60 x 120 cm black white about 15.6 kg 2000 W until 25 m2
220134 60 x 120 cm black black about 15.6 kg 2000 W until 25 m²
220394 60 x 120 cm black frameless about 15.6 kg 2000 W until 25 m²
220149 60 x 120 cm RAL RAL about 15.6 kg 2000 W until 25 m²
220395 60 x 120 cm RAL frameless about 15.6 kg 2000 W until 25 m²



Models 30’s series

The series with 30 cm width.

Article Format Glass color
 Frame Weight Max. Power Room size*
220180 30 x 30 cm RAL  RAL about 2.5 kg 250 W until 3.5 m²
220322 30 x 60 cm white silver about 5.2 kg 500 W until 7 m²
220233 30 x 60 cm white white  about 5.2 kg 500 W until 7 m²
220321 30 x 60 cm white  black  about 5.2 kg 500 W until 7 m²
220324 30 x 60 cm black silver about 5.2 kg 500 W until 7 m²
220323 30 x 60 cm black white about 5.2 kg 500 W until 7 m²/td>
220238 30 x 60 cm black  black about 5.2 kg 500 W until 7 m²
220181 30 x 60 cm RAL RAL about 5.2 kg 500 W until 7 m2
220326 30 x 90 cm white silver about 6.9 kg 750 W until 10 m²
220234 30 x 90 cm white white about 6.9 kg 750 W until 10 m²
220325 30 x 90 cm white black about 6.9 kg 750 W until 10 m²
220328 30 x 90 cm black silver about 6.9 kg 750 W until 10 m²
220327 30 x 90 cm black white about 6.9 kg 750 W until 10 m²
220239 30 x 90 cm black black about 6.9 kg 750 W until 10 m²
220182 30 x 90 cm RAL RAL about 6.9 kg 750 W until 10 m²
220330 30 x 120 cm white silver about 8.7 kg 1000 W until 15 m²
220235 30 x 120 cm white white about 8.7 kg 1000 W until 15 m²
220329 30 x 120 cm white black about 8.7 kg 1000 W until 15 m²
220332 30 x 120 cm black silver about 8.7 kg 1000 W until 15 m²
220331 30 x 120 cm black white about 8.7 kg 1000 W until 15 m²
220240 30 x 120 cm black black about 8.7 kg 1000 W until 15 m²
220183 30 x 120 cm RAL RAL about 8.7 kg 1000 W until 15 m²
220334 30 x 150 cm white silver about 10.5 kg 1250 W until 18 m²
220236 30 x 150 cm white white about 10.5 kg 1250 W until 18 m²
220333 30 x 150 cm white black about 10.5 kg 1250 W until 18 m²
220336 30 x 150 cm black silver about 10.5 kg 1250 W until 18 m²
220335 30 x 150 cm black white about 10.5 kg 1250 W until 18 m²
220241 30 x 150 cm black black about 10.5 kg 1250 W until 18 m²
220184 30 x 150 cm RAL RAL about 10.5 kg 1250 W until 18 m²



* The given values are only valid for rooms with the corresponding isolation.
